1 Form C SPDT 12VDC 30 Amp Relay PCB Mount Sealed R53G-112DF-1-S

Product Categories
Shenzhen Ketai Electronic Technology Co., Ltd.
Contact Now

1 Form C SPDT 12VDC 30 Amp Relay PCB Mount Sealed R53G-112DF-1-S

Brand Name : WRG

Model Number : R53G-112DF-1-S

Certification : TUV/CQC/UL

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 500k per month

Delivery Time : 5-8days

Packaging Details : standard or customization

Keyword : 30A Power Relay

Coil input voltage : 12VDC

Contact form : 1 Form C

Features : SPDT,1 Form C

Contact rating : NO.(30A 240VAC) NC.(20A 240VAC)

Enclosure type : sealed-type

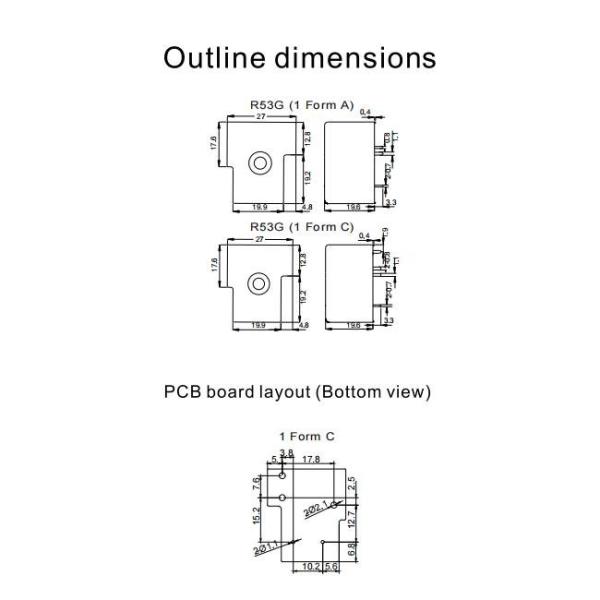

Dimension LxWxH(mm) : 32.0x27.0x20.0

Weight(g) : 25g

Contact Now

1 Form C SPDT 12VDC 30 Amp Relay PCB Mount Sealed R53G-112DF-1-S


30A Power Relay Description:
R53 series power relays are different from other series in pin structure and housing package. There are many styles for both. High Capacity
40A maximum,100mA minimum when it is at DC5V, long-lasting and reliable. Safety system CQC/TUV/UL was approved and can meet many
products needs.

30A Power Relay Features:
1. SPDT,1 Form C
2. rated current 30A
3. 4KV dielectric withstand voltage between coil and contact

30A Power Relay Applications:
1. industry control, such as CNC controller
2. appliances: like freezer, air conditioner...

30A Power Relay Specification:

General data:
Rated withstand impulse voltage coil contact 4kV AC/1min
between contact 1kV AC/1min
Surge voltage 6kV AC
Insulation resistance 1000MΩ(500VDC)
Vibration Fault 10-55Hz(amplitude 1.5mm)
Endurance 10-55Hz(amplitude 1.5mm)
Shock Fault 98m/S2 ,Endurance 980 m/s2
Operating temperature -40 ~ 105℃(no condensation)
Operating humidity 20 ~ 85％
Dimension LxWxH(mm) 18.2x10.2x15.5
Enclosure type Flux-resistance, sealed
Mounting PCB
Weight(g) 6
Certifications cULus:E345228/TUV:R50222701/CQC:CQC10002052739

1 Form C SPDT 12VDC 30 Amp Relay PCB Mount Sealed R53G-112DF-1-S

1 Form C SPDT 12VDC 30 Amp Relay PCB Mount Sealed R53G-112DF-1-S
